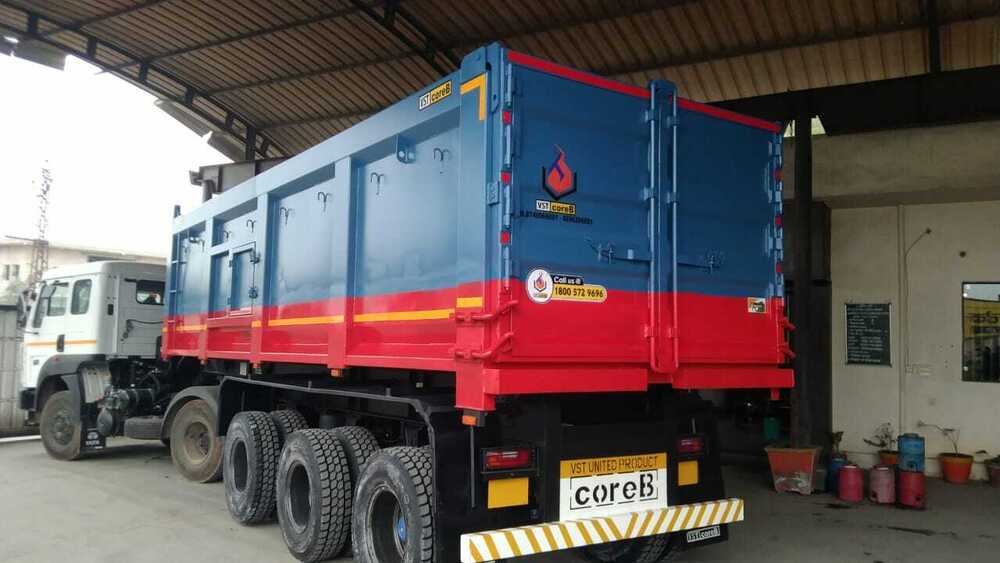

3 Axle Tip Trailers
1500000 INR/Unit
Product Details:
- Usage & Applications Ideal for Coal, Sand, Stone, Aggregates & Mining Material Transportation
- Surface Finish Corrosion Resistant Painted / Powder Coated
- No Of Axel 3 Axles
- Dimension (L*W*H) Approx. 12,000 mm x 2,500 mm x 3,000 mm
- Capacity Approx. 30-50 Cubic Meter (Depending on Design)
- Weight Approx. 7,500 9,000 kg (Unladen)
- Product Type 3 Axle Tip Trailer
- Click to View more
X
3 Axle Tip Trailers Price And Quantity
- 1 Unit
- 1500000 INR/Unit
- Hydraulic Cylinder Front Mounted for Efficient Unloading
- Length, Height, Volume, Axle Brand and Tipping System as per Customer Specification
- Industrial Grade, Customized Color Options
- High Strength MS Plate
- Heavy Duty Mechanical or Air Suspension
- Hydraulically Operated/Manual Locking
- Tri-axle, 10-wheel/12-wheel Options Available
- Pneumatic, Double Line Braking System
- Two-speed, Heavy Duty, Manual/Automated Options
- 10.0020/11.0020 (Varies as per requirement)
- 50 mm or 90 mm (as per international standard)
- Foldable / Fixed, Steel Construction
3 Axle Tip Trailers Product Specifications
- 3 Axles
- Approx. 12,000 mm x 2,500 mm x 3,000 mm
- Approx. 30-50 Cubic Meter (Depending on Design)
- Industrial and Construction Material Handling
- 3 Axle Tip Trailer
- Ideal for Coal, Sand, Stone, Aggregates & Mining Material Transportation
- Corrosion Resistant Painted / Powder Coated
- Heavy Duty Transport and Bulk Tipping
- High Tensile Steel
- Robust Steel Welded Chassis with Reinforced Frame
- Tipper / Tipping Trailer
- Standard: 12,000 mm (Customizable)
- Up to 50 Tons (Depending on Model and Configuration)
- Approx. 7,500 9,000 kg (Unladen)
- Hydraulic Cylinder Front Mounted for Efficient Unloading
- Length, Height, Volume, Axle Brand and Tipping System as per Customer Specification
- Industrial Grade, Customized Color Options
- High Strength MS Plate
- Heavy Duty Mechanical or Air Suspension
- Hydraulically Operated/Manual Locking
- Tri-axle, 10-wheel/12-wheel Options Available
- Pneumatic, Double Line Braking System
- Two-speed, Heavy Duty, Manual/Automated Options
- 10.0020/11.0020 (Varies as per requirement)
- 50 mm or 90 mm (as per international standard)
- Foldable / Fixed, Steel Construction
3 Axle Tip Trailers Trade Information
- JAIPUR
- Cash on Delivery (COD), Cash in Advance (CID), Cheque
- 800 Unit Per Month
- 7 Days
- All India
Product Description
ITEAM DESCRIPTION SUBFRAME 8 mm folded channel of High yield steel BSK 46/ Eqvt with guaranteed yield strength of 460 MPA. The sub frame is fastened to the chassis by means of attachment plates & pivot assembly PLATFORM The platform will be constructed with 6 mm thick -Equivalent to ST- 52 with guaranteed yield strength of 350 MPA duly strengthened and reinforced (cross member) 4 mm ST- 52/ Eqvt with guaranteed yield strength of 350 MPA to the body runner. BODY PANELS Side & head board panels will be made of 4mm thk ST- 52/ Eqvt with guaranteed yield strength of 350 MPA duly strengthened and reinforced with stiffeners. Hinged Tail doorHydraulic Tipping Efficiency
The front-mounted hydraulic cylinder allows for swift and controlled tipping, providing quick unloading for heavy bulk materials. This mechanism minimizes downtime at worksites and enhances productivity, catering to the high demands of industrial and construction material handling. With both manual and automated landing gear options, our trailers ensure ease of operation whether on the go or stationed at project sites.
Customized to Your Application
Our trailers are tailored to meet specific transportation needs, with customizable lengths, heights, axle brands, and tipping systems. Clients can opt for foldable or fixed side walls, as well as various tire sizes and paint choices. This level of customization ensures maximum operational efficiency for different loading capacities and terrain requirements.
Durability and Safety
Constructed using high-tensile steel and finished with industrial-grade corrosion-resistant coatings, these tip trailers are designed for longevity. The robust welded chassis and reinforced frame support heavy-duty cargo, while the pneumatic double line braking system guarantees safe handling, especially during loading and unloading operations.
FAQ's of 3 Axle Tip Trailers:
Q: How does the hydraulic cylinder tipping mechanism enhance unloading efficiency?
A: The front-mounted hydraulic cylinder provides powerful lifting, enabling quick and complete unloading of bulk materials. This system reduces manual effort, ensures safe operation, and accelerates turnaround times, making it ideal for high-volume industrial and construction sites.Q: What customization options are available for 3 Axle Tip Trailers?
A: Customers can choose the trailer's length, height, volume, axle brand, wheel configuration (10 or 12 wheels), tipping system, type of suspension, foldable or fixed side walls, tire sizes, king pin specifications, and paint color, among others. These options help tailor the trailer to specific operational requirements.Q: When should I choose a mechanical suspension over air suspension?
A: Mechanical suspension is best suited for rough terrain, heavy-duty, and off-road applications due to its durability and lower maintenance needs. Air suspension, on the other hand, offers a smoother ride, better load distribution, and is ideal for highways or sensitive cargo.Q: Where are these trailers commonly used?
A: 3 Axle Tip Trailers are widely utilized in mining, construction, and industrial sites across India and globally for transporting coal, sand, stone, aggregates, and other bulk materials. Their robust build and high load capacity make them ideal for demanding environments.Q: What is the process for ordering a customized tip trailer?
A: To order, clients specify their required dimensions, weight capacity, tipping mechanism, axle brand, suspension type, and additional features. Our design team then develops a tailored solution and fabricates the trailer accordingly, ensuring compliance with safety and quality standards.Q: What are the benefits of a corrosion-resistant painted or powder-coated finish?
A: Industrial-grade paint and powder coating protect the trailer from harsh weather and corrosive environments. This extends the trailer's lifespan, maintains its appearance, and reduces maintenance costs, making it a reliable investment for long-term use.Tell us about your requirement
